We introduce
ourselves as a prominent trader, exporter and supplier of an extensive
array of Fenner Resilient Couplings. These couplings are sourced from
the reputed and certified vendors of the market. The offered range is
made available in various sizes and dimensions for our clients to choose
from. Our precious clients can purchase the offered couplings from us at
reasonable prices within committed time period.
FEATURES :
 High
strength
Rust
resistance
Finely
finished
SPECIFICATIONS :
Fenner
Resilient Couplings give you a combination of advantages of high
power rating of a gear coupling and flexibility of elastomer
coupling
They are
easy to install and simple to maintain
The
flexible grids are quickly replaceable without disturbing the
connected equipment
Fenner
Resilient Couplings are available in a broad range of sizes covering
from 0.45 kW to 1307 kW per 100 RPM and bores up to 267 mm.

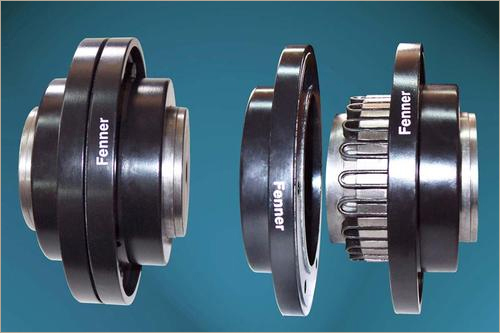

A
High torque Resilient Coupling basically comprises a grid spring
which connects two hubs – one of the driving and the other on the
driven shaft – through axially cut grooves around the peripheries
of the two hubs
The
spring, which is of special design compatible with the required
characteristics of the system, from a series of resilient bridges
along the grooves
The
grooves are flared to allow the grid members long flexible spans
under normal loads as well as better support by the sides of the
grooves under over load conditions |
